CONTACTLESS & AUTONOMOUS SCANNING
- Broaden your services with a new innovative experience.
- Lightweight and portable
- No handles to touch/clean or block the sensors
- Integrated medical grade scale Setup in 2-mins
TECH SPECS
Specifications
Scanner
- Footprint: 6 ft x 4.3 ft (185 cm x 131 cm)
- Rotating Platform Weight: 10.5kg (23lbs)
- Sensor Tower Weight: 6kg (13lbs)
- Power: 110-240 V
- Setup Time: < 5 mins
- Scan Duration: 30 - 40 seconds
- Scan Processing Time: Under 2 Minutes
Tower Specifications
- Height: 117cm (46in)
- Diameter: 25.4cm (10in)
- Weight: 6kg (13lbs)
- Recommended Distance: 25 in (63.5 cm)
- Technology: Active Stereo Infrared
Platform Specifications
- Dimensions: 66cm x 66cm x 12.5cm (24in x 24in x 4in)
- Weight: 10.5kg (23lbs)
- Power: 110 or 240 V
- Recommended Max Load: 250kg (550lbs)
- Speed: ~35 seconds per revolution
Measurements and Model
- Torso Measurement Precision: +- 2.5 5mm (.1-.2in)
- Scanning Volume: Variable
- # of Standard Measurements: 33
Requirements
Computer Requirements
- Intel is 8th Generation (15-8260U) 2.4 GHz or faster CPU
- 8 GB or more DDR4 RAM
- Dedicated USB 3.0 SuperSpeed bus & sunnorted chinset
Computer Requirements
- Intel i5 8th Generation (i5-8260U) 2.4 GHz or
faster CPU - 8 GB or more DDR4 RAM
- Dedicated USB 3.0 SuperSpeed bus &
supported chipset - 256 GB or more hard disk storage (SSD drive recommended).
- 1920x1080 monitor resolution
- Operating System: 64-bit Windows 10 or above
- Recommended: Touchscreen

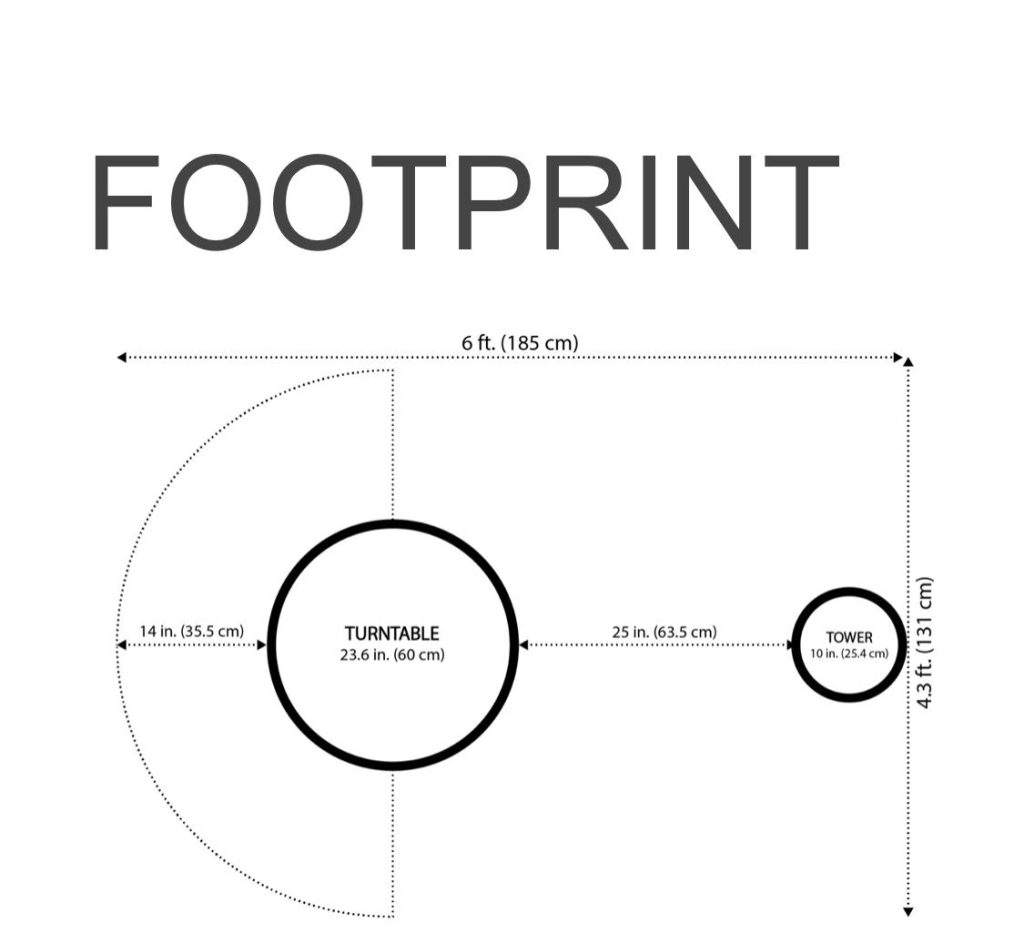

Space Requirements
- Minimum Scanning Area: 6 ft. (185 cm) x 4.3 ft. (131 cm)*
- Distance of Sensor Base from Turntable: 25 in. (63.5 cm)
- Clearance Around Turntable: 14 in. (35.6 cm) on all sides*
- Minimal lights, LED lights not recommended
- No mirrors in the field of view
- No direct sunlight in the field of view
